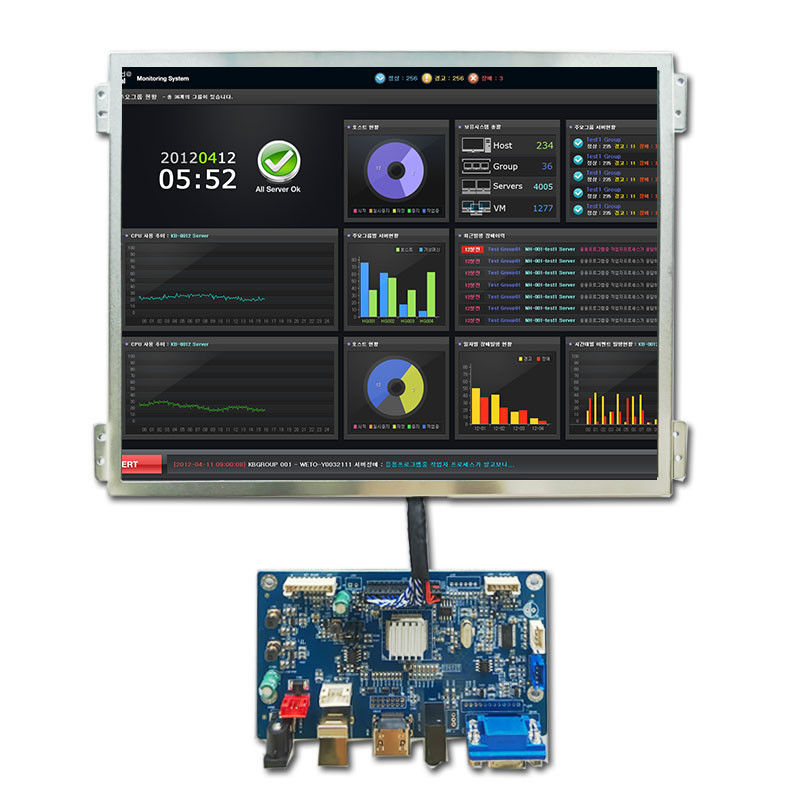

Name: 15 inch 1024*768 LCD Display HDMI Driver Board
Brand: Hangzhou Zoyo chuxian Intelligent Technology Co., Ltd.
SKU: 92-15001-AH1
Price: Negotiable USD
Availability: InStock

15 inch 1024*768 LCD Display HDMI Driver Board

Product Details

Place of Origin: Hangzhou, CHINA

Brand Name: ZOYO

Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068

Model Number: 92-15001-AH1

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $2~$500 per piece

Packaging Details: CUSTOMIZED

Delivery Time: 3-5 work days

Payment Terms: L/C, D/A, D/P, T/T,paypal

Supply Ability: 5k-20k pieces per day

Get Best Price

Meta description: A 15 - inch LCD display with a resolution of 1024 * 768 is presented. The HDMI driver board has HDMI, VGA, CVBS, and video signal inputs and supports LCD displays with LVDS interfaces.
Image Alta name: LCD Display, HDMI Driver Board
Keywords: LCD Display, HDMI Driver Board

15 - inch LCD Display:
 Resolution: 1024 * 768
 AA: 304.128mm * 228.096mm
Description of the Driver Board's Functions:
 It has inputs for HDMI, VGA, CVBS, and video signals.
 Power input is DC + 12V (ranging from 9V to 15V).
 There is a multi - function OSD operation.
 It has an optional remote control function.
 It can automatically shut down when there is no signal.
Signal Input Standards:
 HDMI: (General 1.1 version)
 VGA: 640 * 480, 800 * 480, 800 * 600, 1024 * 600, 1024 * 768, 1280 * 800
 CVBS

The 90 - 15001 - AH1 is a highly versatile 15 - inch VGA LCD screen with a resolution of 1024x768 pixels and is equipped with a HDMI/VGA signal driver board. To further enhance its functionality, it offers optional touch panel support. This includes a 4 - wire resistive touch panel with a USB driver board and cable, or a capacitive touch panel with a USB controller board and cable.

This display is designed to achieve superior image quality and provides full viewing angles, making it an ideal choice for a wide variety of applications. These include embedded systems, automotive displays, industrial equipment, security systems, and handheld devices where high - quality video output is crucial. Its compatibility with Raspberry Pi through HDMI increases its flexibility, as it supports operating systems such as Raspbian, Ubuntu, and Windows 10 IoT. Additionally, the display supports multi - touch and is driver - free, which simplifies the integration process.

Apart from being used with Raspberry Pi, the 90 - 15001 - AH1 can function as a computer display. It is compatible with Windows 11, 10, 8, and 7. Its driver - free functionality and multi - touch capabilities make it a very convenient display solution for a broad range of applications.

Product Parameters
Diagonal Size	15”
Display Format	1024x768 Pixels
Interface	HDMI
IC or Equivalent
Connection	LVDS string
Outline Dimension	326.5(W)x253.5(H)X12(T)mm
Active Area	304.128(W)x228.096(H)mm
Touch Panel Optional	Yes
Contrast Ratio(Typ)	1000
Viewing Direction	ALL
Viewing Angle Range	Left:85 , Right:85 , Up:85 , Down:85 degree
Brightness(Typ)	700 cd/m2
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃~80℃

彩色 TFT 屏幕的工作原理是什么?

提供一下这个 7 寸屏幕的使用说明书

这个屏幕的使用寿命是多久?

7 寸屏幕的应用场景有哪些?

有哪些品牌和型号的工业 LCD 显示器可以与该驱动板兼容?

Max Support Resolution:	1024*768	Signal Input:	HDMI,VGA,CVBS
Power Input:	DC +12V	Working Temperature:	-10℃~+60℃
Working Humidity:	90%RH (no Condensation)

Max Support Resolution:	1024*768
Signal Input:	HDMI,VGA,CVBS
Power Input:	DC +12V
Working Temperature:	-10℃~+60℃
Working Humidity:	90%RH (no Condensation)
