Product Details
Place of Origin: Hangzhou, China
Brand Name: Manufacturer
Certification: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Model Number: 90-07012-BH1
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $2~$500 per piece
Packaging Details: CUSTOMIZED
Delivery Time: 3-4 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5k-20k pieces per day
Size(inch): |
7.0 |
Luminance(nits): |
350 |
Resolution: |
800*480 Pixels |
Active Area(mm): |
153.84*85.63 |
Outline Dimension(mm): |
164.8*99.8*5.6 |
LED Life Time(hrs): |
20k |
Storage Temperature: |
-30℃ To 80℃ |
Operating Temperature: |
-20℃ To 70℃ |
Size(inch): |
7.0 |
Luminance(nits): |
350 |
Resolution: |
800*480 Pixels |
Active Area(mm): |
153.84*85.63 |
Outline Dimension(mm): |
164.8*99.8*5.6 |
LED Life Time(hrs): |
20k |
Storage Temperature: |
-30℃ To 80℃ |
Operating Temperature: |
-20℃ To 70℃ |

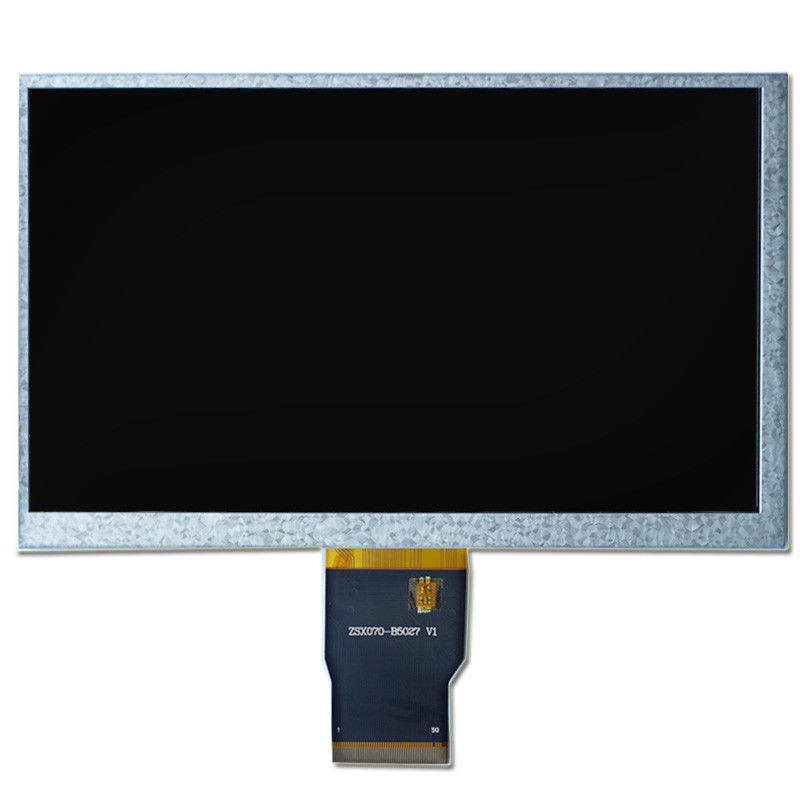

Feature Description: Resolution 800*480 pixels Industrial TFT Display 7 Inch Car Touch Display
The 7-inch TFT car LCD display with industrial-grade quality is specifically designed to meet the demanding requirements of automotive applications. Here are the key features of this display:
1) Industrial-Grade Durability: The display is built to withstand the harsh conditions of the automotive environment. It is resistant to vibrations, shocks, and temperature fluctuations commonly experienced in cars, ensuring reliable operation over an extended lifespan.
2) Anti-Fogging and Condensation Resistance: The display incorporates anti-fogging and condensation-resistant features, preventing fogging or condensation buildup on the screen. This ensures clear visibility, even in humid or temperature-changing environments, enhancing safety and usability.
3) Long-Term Availability and Support: The display is backed by long-term availability and support from the manufacturer. This ensures continuity and reliability for automotive manufacturers, enabling seamless integration and ongoing technical assistance.
| Feature | Description |
| Model Number | 90-07012-BH1 |
| Viewing Angle(RLUD) | 60/60/50/50 |
| View Direction | 6 |
| Interface | RGB 50 |
| Brightness(cd/m²) | 350 |
| LED Lifetime (hrs) | 20K |
| Contrast Ratio | 500 |
| Operating Temperature | -20℃ to 70℃ |
| Storage Temperature | -30℃ to 80℃ |
| Application | Ideal choice for car infotainment systems, navigation displays, rearview cameras, and other automotive applications where reliability and performance are paramount |
| Touchscreen Support | Optional touchscreen functionality (PCAP, capacitive or resistive) |
This high resolution TFT display is suitable for military LCD displays, industrial LCD displays, and industrial TFT LCD applications.
Size: From 1.77 inch to 17 inch
Imteraface: SPI ；MCU; RGB; MIPI; LVDS; EDP
Brightness: 200-1000 nits
Lifetime: 10k-50k
Touch Screen: PCAP; Capacitive touch screen, Resistive Touch screen
Wide Temperature: -40℃~85 ℃
Customize your car back seat LCD TFT Display Module with our extensive product customization services.
The High Resolution TFT Display product technical support and services include:
Some Classic Products in our company for reference( All products can be tailored according to your requirements)
| Size (inch) |
P/N | Resolution | Viewing angle |
Active Area (mm) |
Module Size (mm) |
Interface | OP℃ | Luminance(nit) |
| 2 | 90-02005-001 | 480*360 | IPS | 40.8*30.6 | 46.1*40.96*2.54 | RGB | -20~70 | 200-500 |
| 2 | 90-02009-001 | 240*320 | IPS | 30.6*40.8 | 36*51.6*2.45 | MCU/RGB | -20~70 | 200-500 |
| 3.5 | 90-03507-001 | 320*480 | IPS | 48.96*73.44 | 60.2*97.7*3.39 | MCU | -20~70 | 200-500 |
| 3.5 | 90-03521-BH1 | 1240*800 | IPS | 74.4*48 | 78.15*56.05*3.75 | MIPI | -20~70 | 200-500 |
| 4.3 | 90-04304-001 | 480*272 | TN | 95.04*53.86 | 105.5*67.2*3 | RGB | -20~70 | 300-600 |
| 5 | 90-05024-001 | 720*1280 | IPS | 61.78*109.82 | 65.35*118.80*1.65 | MIPI | -20~70 | 300-600 |
| 7 | 90-07018-IH2 | 1024*600 | IPS | 154.21*85.92 | 164*97*2.6 | MIPI | -20~70 | 300-600 |
| 7 | 90-07005-001 | 800*480 | TN | 154.08*85.92 | 164.9*100*5.7 | RGB | -20~70 | 300-600 |
| 8 | 90-08004-BS1 | 800*1280 | IPS | 107.64*172.22 | 114.60*184.10*2.60 | MIPI | -20~70 | 300-600 |
| 9 | 90-09001-BH1 | 1024*600 | IPS | 196.608*114.15 | 210.7*124.6*5 | LVDS | -20~70 | 300-600 |
| 9.7 | 90-09701-001 | 1024*768 | TN | 196.61*147.46 | 210.2*164.2*4.9 | LVDS | -20~70 | 300-1000 |
| 10.1 | 90-10116-IH1 | 1280*800 | IPS | 216.96*135.6 | 229.46*149.1*2.5 | LVDS | -20~70 | 300-1000 |
| 10.3 | 90-10301-BS3 | 720*1600 | IPS | 106.92*237.6 | 115*250.8*4.6 | MIPI | -20~70 | 300-1000 |
| 10.25 | 90-10251-001 | 1280*480 | IPS | 243.84*91.44 | 255.6*105.82*1.254 | LVDS | -20~70 | 300-1000 |
| 10.4 | 90-10402-001 | 1024*768 | IPS | 211.2*158.48 | 225.8*174.3*5.6 | LVDS | -20~70 | 300-1000 |
| 12.1 | 90-12101-HH1 | 1024*768 | IPS | 245.76*184.32 | 260.5*202*10.5 | LVDS | -20~70 | 300-1000 |
| 13.3 | 90-13301-BH1 | 1920*1080 | IPS | 293.8*165.2 | 305.2*178.2*2.6 | LVDS | -20~70 | 300-1000 |
| 15 | 90-15001-AH1 | 1024*768 | TN | 304.128*228.096 | 326.5*253.5*12 | LVDS | -20~70 | 300-1000 |
| 15 | 90-15002-BH1 | 1600*1200 | IPS | 304.88*228.5 | 326.58*252.98*11 | LVDS | -20~70 | 300-1000 |
| 15.6 | 90-15601-AH2 | 1920*1080 | IPS | 344.16*193.59 | 350.70*205.27*3.00 | EDP | -20~70 | 300-1000 |
| 17.3 | 90-17301-BH1 | 1920*1080 | IPS | 381.888*214.812 | 389.888*227.012*3.5 | LVDS | -20~70 | 300-1000 |
